MINIATURE,DUMMYPLUGS,HOLEPLUGS
234
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

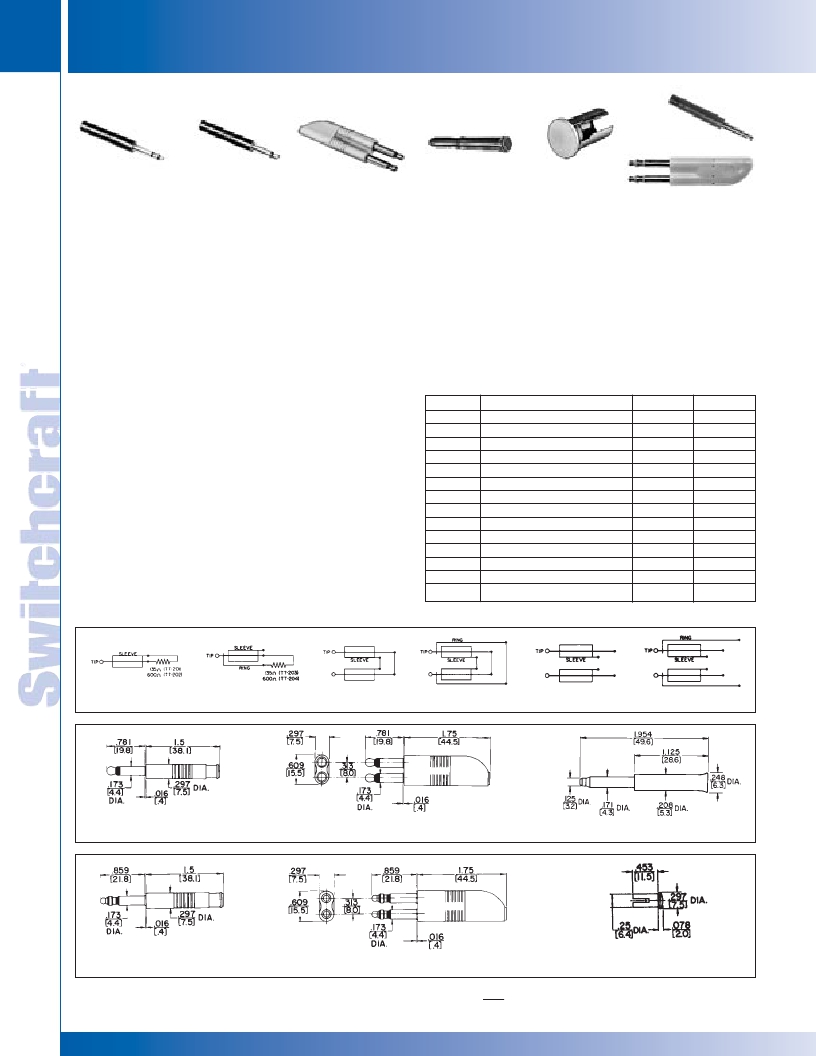

MINIATURE, DUMMY PLUGS, HOLE PLUGS
TT5152 or TT206
TT203
TT205
TT515
TT510
TT-Terminating
TT-Dummy
TT207 TT-Twin
TT-Dummy
Hole
Plug
Plug
Looping Plug
Plugs
Plug
TT210
Terminating, dummy and looping plugs are designed for
use with Tini-Telephone ? Jacks. TT-Phone Plugs are also
recommended for use on other miniature telephone jacks
with same bushing inside diameter and compatible tip
and/or ring spring configurations.
TT-TERMINATING PLUGS
TT-Phone Plug terminating plugs are used to terminate a
circuit with a specific resistive load. A precision 1/2 watt, ± 1%
resistor is molded into the handle of each terminating plug.
See “PLUG SCHEMATICS” for resistor wiring. Resistance
value is marked on plug handle. Other resistance values are
ORDERING
1. Order by part number from table.
2. Contact Switchcraft for any special order items.
SPECIFICATIONS
Series TT200 Tip Rod, Ring and Sleeve:
Brass per QQ-B-626.
Handle: Molded PVC, ivory or black.
Series TT515: Molded of dimensionally stable plastic
in black, red or white.
available on special order.
TT-DUMMY PLUGS
TT-Phone Plug dummy plugs are designed to be inserted into
phone jacks to actuate shunt and isolated switching circuits.
TT-LOOPING PLUGS
TT-Phone Plug looping plugs are used to loop or patch
adjacent jack circuits. See “PLUG SCHEMATICS” for wiring.
TT-HOLE PLUG
TT-Hole Plugs are used to close off unused openings in all
Switchcraft TT-Jack Panels. Molded of black plastic with brass
sleeve.
Part No.
? TT201
? TT202
TT203
TT204
TT205
TT206
? TT207
TT208
TT209
TT210
TT510
TT5151
TT5152
TT5155
Description
2-conductor terminating-135 ?
2-conductor terminating-600 ?
3-conductor terminating-135 ?
3-conductor terminating-600 ?
2-conductor dummy
3-conductor dummy
2-conductor twin looping
3-conductor twin looping
2-conductor twin dummy
3-conductor twin dummy
Hole Plug
2- or 3-conductor dummy
2- or 3-conductor dummy
2- or 3-conductor dummy
Schematic
1
1
2
2
5
6
3
4
5
6
–
–
–
–
Color
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Ivory
Ivory
Black
Red
Black
White
? Special order only; contact Switchcraft for price and delivery.
Plug Schematics
1
2
3
4
5
6
Nos. TT-201, TT-202, TT-205
Nos. TT-203, TT-204, TT-206
Nos. TT-207, TT-209
Nos. TT-208, TT-210
Nos. TT-515-1, -2
Nos. TT-510
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
